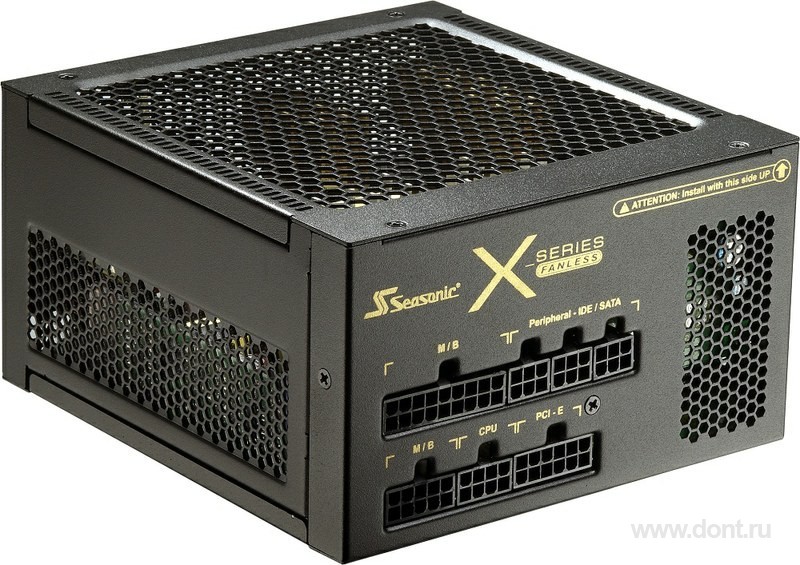

Seasonic Platinum X-400 FANLESS, modular, 12V@33A, 80plus Platinum, SS-400FL² (SS-400FL2)
Заявленные характеристики и внешний вид изделия могут меняться производителем
Описание Seasonic Platinum X-400 FANLESS, modular, 12V@33A, 80plus Platinum, SS-400FL² (SS-400FL2)
Максимальная нагрузка: 400Вт
Вентилятор: отсутствует
PFC: активный
КПД до 92%
80plus PLATINUM
Характеристики Seasonic Platinum X-400 FANLESS, modular, 12V@33A, 80plus Platinum, SS-400FL² (SS-400FL2)
| Артикул |
[114300] |
| 4-pin для HDD \\ CD-ROM : |
5 |
| 4-pin для FDD : |
1 |
| 6-pin для PCE-E 1.0 : |
1 |
| Размеры (мм) : |
160x150x86 |
| Вес (примерный, кг) : |
3 |
| Сайт производителя : |
www.seasonicusa.com |
| Описание: |
Seasonic Patented DC Connector Panel with Integrated Voltage Regulation Module*
Seasonic’s Patented Fully Modular Design while minimizing voltage drops and impedance, it greatly maximizes efficiency and cooling to enhance overall performance and reliability.
* Patent #: US8.040.686, TW381825, CN1552150, JP3171420.
Patent Pending: US, DE
80+ Platinum
The Platinum Series, certified in accordance to the 80PLUS highest standards, offers the newest technology and innovation for performance and energy savings with up to 92% efficiency and a true power factor of greater than 0.9PF.
Special Features -
1. 80PLUS® Platinum Certified Super High Efficiency
2. Full Modular Cabling Design
3. Fanless- 0dBA
4. Patented DC Connector Module with Integrated VRM [Voltage Regulator Module]
5. DC to DC Converter Design
6. Conductive Polymer Aluminum Solid Capacitors
7. Highly Reliable 105°C Japanese Aluminum Electrolytic Capacitors
8. Tight Voltage Regulation [±2%]
9. Active Power Factor Correction [99% PF Typical]
10. High +12V Output
11. Gold Plated High Current Terminals
12. Dual Sided PCB Layout
13. Ultra Ventilation [Honeycomb Structure]
14. Multi-GPU Technology Support
15. All-in-One DC Cabling Design
16. Easy Swap Connector
17. Universal AC Input [Full Range]
18. 7 Years Warranty
Product Information -
1. AC input & DC output voltages /Wire Configuration/Dimension
Model: Platinum-400 Fanless (SS-400FL2 Active PFC F3)
|
| Комментарий: |
модульное подключение кабелей
1x ATX20/24pin(61cm), 1x ATX12V 8/4pin(65cm), 1x PCI-E 8/6pin (60cm), 5x HDD4pin, 6x SATA, 1x FDD |
| 4-pin для CPU (ATX12V) : |
 |
| 5-pin для SATA : |
6 |
| 8-pin для CPU (EPS12V) : |
|
| 24-pin ATX |
|
| Модульный БП : |
|
| USB Data Connector : |
 |
| Мощность : |
400 W |
| PFC : |
Активный |
| Предельная мощность по +12V : |
396 |
| Вентилятор : |
|
